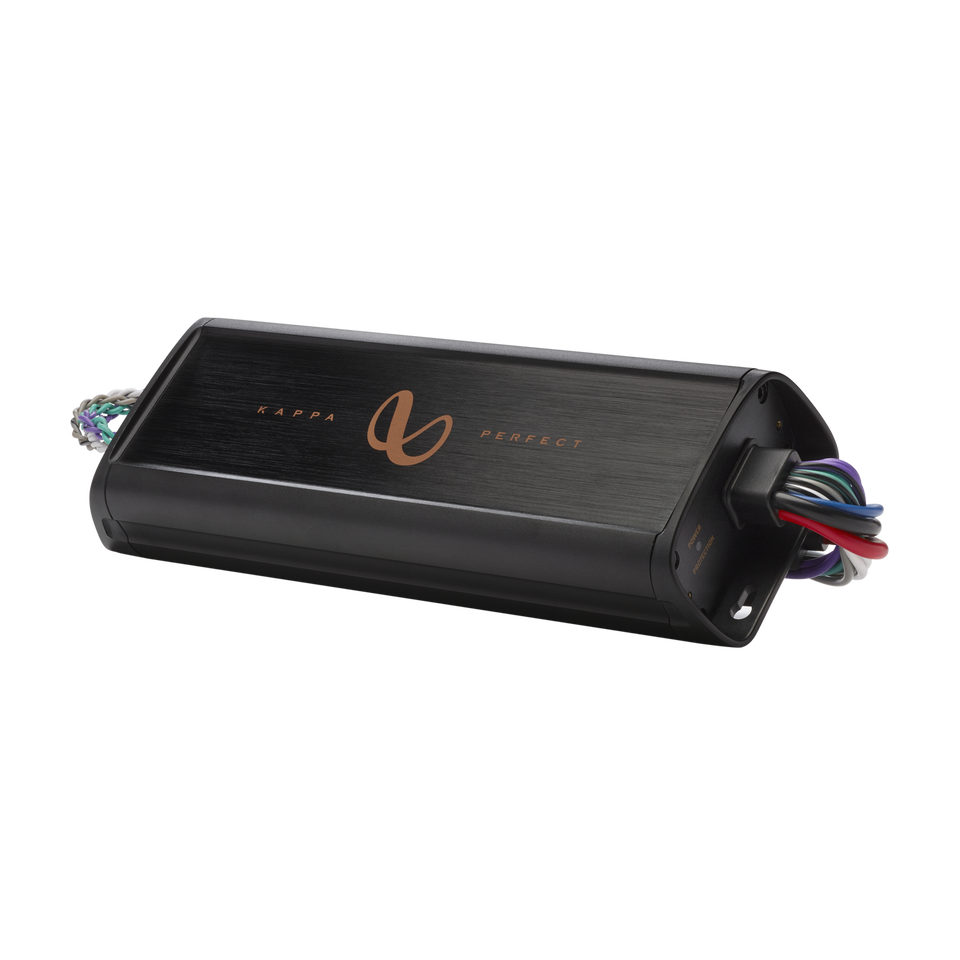

KAPPA PERFECT KP5004

Product Specifications

General Specifications

Max Power: 1250W peak

RMS Power Output @ 2Ω (full-range): 125W x 4, <1% THD+N

RMS Power Output @ 4Ω (full-range): 75W x 4, <1% THD+N

RMS Power Output @ 4Ω Bridged (full-range): 250W x 2, <1% THD+N

Front selectable hi-pass filter: off, 60-, 80-, 120Hz @ 12dB/octave

Rear selectable all-/hi-/lo-pass filter: 60-, 80-, 120Hz @ 12dB/octave

Frequency Response: 20Hz – 20kHz

Signal-to-Noise Ratio (full-range): >75dB (ref 1W output @ 4Ω)

Fuse rating: 40A

The Kappa Perfect Series KP5004 powersports amplifiers deliver efficient Class D power, from an ultra-compact chassis, designed to fit into tight spaces and withstand outdoor environments without missing a beat. Available with 4-channels of output power, the Kappa Perfect Series KP5004 includes selectable front/rear electronic crossover frequency adjustment, with rear lo-pass capability, for quick and easy installation. Plus, it has been engineered for harsh conditions, with power and performance to meet the needs of most audio systems making it the perfect match for all of your Infinity car, marine and powersports products.

Ultra-Compact Aluminum Chassis

Infinity Kappa Perfect powersports amplifiers feature an ultra-compact aluminum chassis and small footprint design to allow for installation almost anywhere.

Conformal-Coated PCB

Infinity Kappa Perfect powersports amplifiers are engineered to withstand harsh conditions, with fully “marinized” circuit boards to ensure flawless power delivery, year after year.

Big Dynamic Power

Dynamic Class D output power is perfectly matched to meet the needs for your Infinity car, marine and powersports products.

Full-Range Outputs and Selectable Crossovers

The Kappa Perfect KP5004 amplifier features front all-/high-pass crossover filters, selectable rear all-/hi-/lo-pass crossover filters, and front/rear selectable 12dB per octave electronic crossover slopes from 60-, 80-, 120Hz to allow for quick and easy installation.

High- and Low-Level Inputs

Speaker-level and low-level inputs let Infinity Kappa Perfect amplifiers integrate with just about any audio input.

Harman Standard Reliability Testing

Infinity is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts.

Infinity Industrial Design

At Infinity, we take pride in our iconic design heritage. Our design team took great care to ensure that your Kappa Perfect KP5004 Amplifier will look amazing mounted wherever your music takes you. The smooth curve of the amplifier body, angular end cap design, and inset brushed aluminum with Infinity logo all tie together with our classic, current and future design language while concentrating on the design of your lifestyle.
