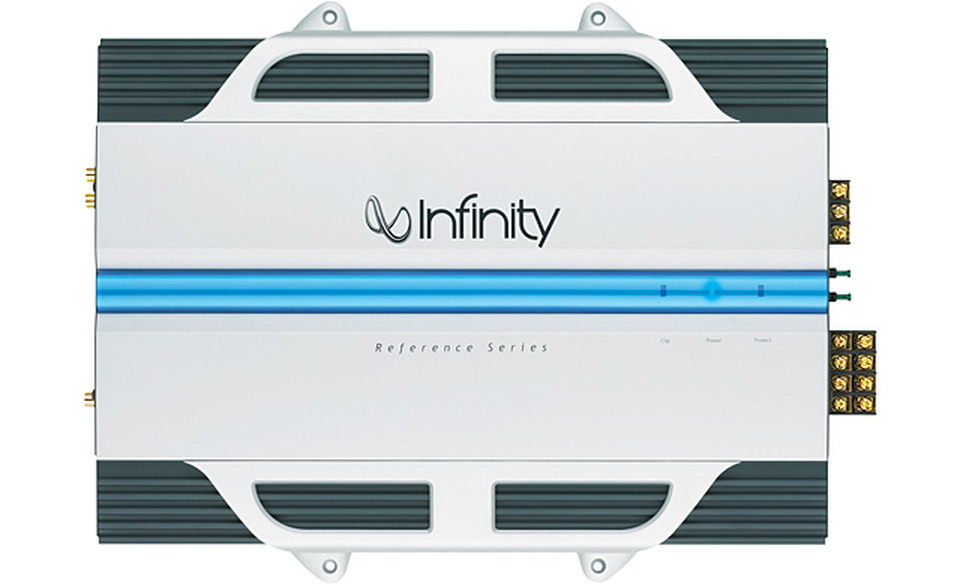

REFERENCE 7540A
4-Channel Power Amplifier (111 watts x 4)
Documents & Downloads
Product Specifications
- CEA Rated
- Yes
- Amplifier Power (RMS)
- 111 watts x 4 channel @ 4 ohms, 14.4V supply and ≤1% THD + N
- Amplifier Power (RMS)
- 278 watts x 2 channel @ 4 ohms, 14.4V supply and ≤1% THD + N
- Signal-to-Noise Ratio
- 81dBA (reference 1 watt into 4 ohms)
- Dynamic Power
- 164 watts @ 2 ohms
- Effective Damping Factor
- 6.315 @ 4 ohms
- Frequency Response
- 10Hz – 100kHz (-3dB)
- Maximum Input Signal
- 5.5V
- Input Sensitivity
- MAXIMUM... 230mV
- Output Regulation
- .088 dB @ 4 ohms
- MSRP U.S.
- $374.95 each
520 Watt 4-channel amplifier
