KAPPA one 6

KAPPA one 6

High-performance mono Class D amplifier

Getting started with your KAPPA one 6

Product Registration

Register your product

Do you own this product? Register it here! And claim your warranty or service easily

Register now

Documents & Downloads

Product Specifications

High-performance, mono Class D subwoofer amplifier
Max Power
1500W Peak
Power Output, 2Ω
600Wrms x 1, <0.1% THD+N
Power Output, 4Ω
380Wrms x 1, <0.1% THD+N
Signal-to-Noise Ratio
>=80dB (ref 1W output @ 2Ω)
High-Efficiency, Low Distortion Class D Design
Active LPF, variable 32 – 320Hz
Variable Line-Level and Speaker-Level Inputs (0.2 to 20V input range)

Engineered For The Ultimate Sound Experience

Kappa mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers—and the performance you expect from Infinity. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Kappa amplifiers give you power to shape your car audio experience in new ways.

Every Kappa amplifier, including the full-range models, features high-efficiency Class D topology. This technology allows Infinity to engineer amplifiers that are more compact, generate less heat, and draw less current from the vehicle's electrical system.
Infinity's Kappa amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regardless of output level.
Infinity Kappa amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all five models to let the user know when one of these conditions exists.
All Infinity Kappa amplifiers equipped with newly introduced E.A.R.L terminal for better grounding. For 5-channel and mono amplifiers, adapter connector is available in the box for easy installation.
With it becoming more and more difficult to find spacious locations for amplifier mounting, Infinity Kappa amplifiers have been developed in a small compact form factor to allow more location versatility.
Sometimes, an amp can be as stylish as it is powerful. With anodized aluminum and screwdriver access concealed by a magnetically attached panel, Infinity Kappa amplifiers have a clean, streamlined industrial design.
Kappa amplifiers feature a subsonic filter with variable frequency and Q. For sealed enclosures, set the Frequency Control to 35Hz, and then adjust the Boost Control to your preference. For vented enclosures, set the Frequency Control to 10Hz below the port tuning, then adjust the Boost control to your preference.
The 5-channel and mono amplifiers come with a remote bass control. This allows for increasing or decreasing bass independent of the head units tone controls. The benefit is total control over just the bass output. The tuning is right at driver's finger tips.

Images & Videos

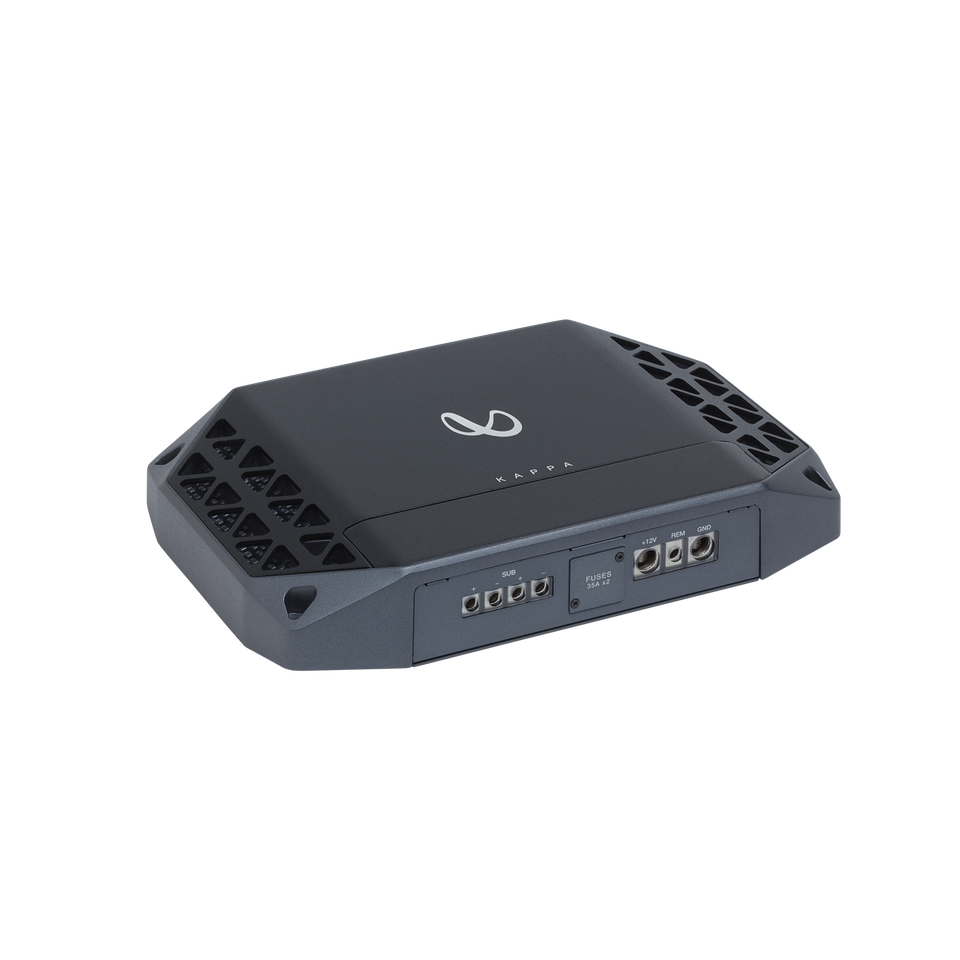

KAPPA one 6 - Black - High-performance mono Class D amplifier - Hero
  • KAPPA one 6 - Black - High-performance mono Class D amplifier - Hero
  • KAPPA one 6 - Black - High-performance mono Class D amplifier - Top
  • KAPPA one 6 - Black - High-performance mono Class D amplifier - Detailshot 1
  • KAPPA one 6 - Black - High-performance mono Class D amplifier - Detailshot 2
  • KAPPA one 6 - Black - High-performance mono Class D amplifier - Detailshot 3
