Reference 10001A

Product Specifications

General Specifications

600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)

Class D amp technology

frequency response: 10-320 Hz

variable low-pass filter (32-320 Hz, 12 dB/octave)

variable bass boost (0-12dB at 45Hz)

phase switch (0, 180 degrees)

wired remote level control included

preamp inputs and outputs

speaker-level inputs (speaker wire-to-RCA adapters included)

4-gauge power and ground leads recommended — wiring and hardware not included with amplifier

fuse rating: 35A x 3

WxHxD=320mm x 55.5mm x 180mm WxHxD=12-5/8” x 2-3/16" x 7-1/8”

1000w RMS / 2000W MAX

Series of high-performance mono, 4 and 5 channel car amplifiers

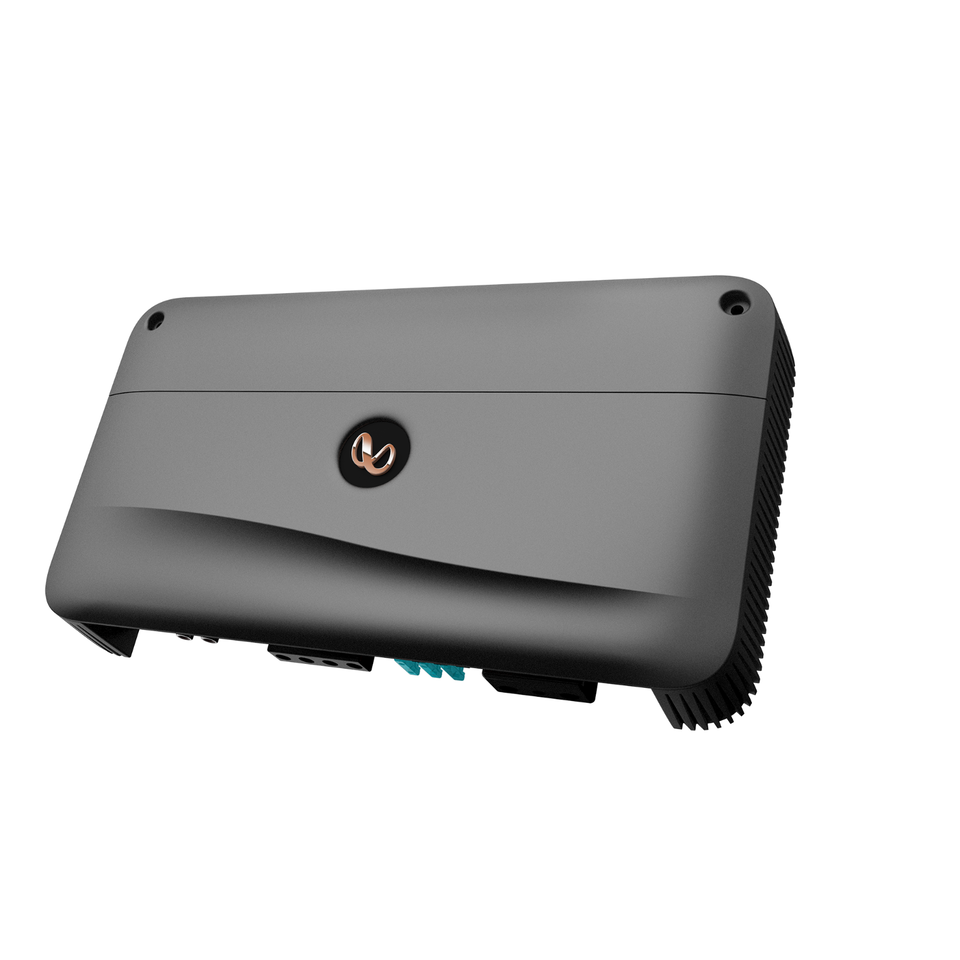

Reference 10001A mono subwoofer amplifier delivers a blistering 1,000-Watts RMS using Class D amplifier topology to ensure cool running and minimal current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio — and Infinity includes RCA-to-speaker wire adapters so you'll make the right connections. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

Compact size

The Infinity Reference 10001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input

Speaker-level and low-level inputs allow the Reference 10001A to integrate with both aftermarket and factory car stereo systems.

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, the Reference 10001A features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion

The Reference 10001A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection

On-board circuitry protects the Reference 10001A from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch

This switch changes the input phase to inverted or noninverted.

RBC wired remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
