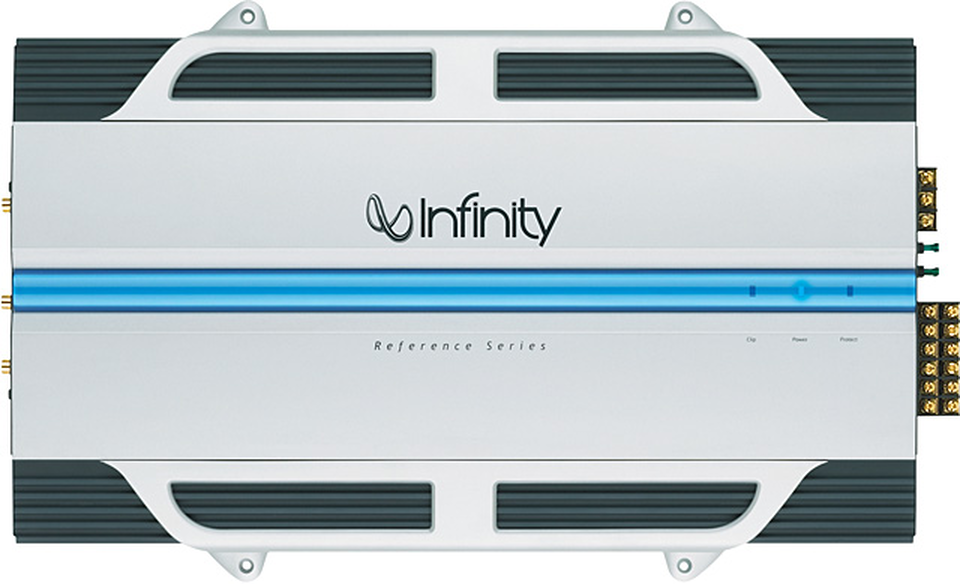

REFERENCE 5760A
6-Channel Power Amplifier (56 x 4 + 107 x 2)
Documents & Downloads
Product Specifications
- CEA Rated
- Yes
- Amplifier Power (RMS)
- 148 watts x 2 + 287 watts x 1 @ 4 ohms, 14.4V supply and ≤1% THD + N2
- Amplifier Power (RMS)
- 56 watts x 4 + 107 watts x 2 @ 4 ohms, 14.4V supply and ≤1% THD + Noise
- Signal-to-Noise Ratio
- 82dBA (reference 1 watt @ 4 ohms)
- Dynamic Power
- 117 watts (channels 1,2,3,4)
- Dynamic Power
- 163 watts (channels 5,6)
- Effective Damping Factor
- 6.373 @ 4 ohms
- Frequency Response
- Channels 1-4... 10Hz – 57kHz (-3dB)
- Frequency Response
- Channels 5-6... 10Hz – 302Hz (-3dB)
- Maximum Input Signal
- 6.3V
- Input Sensitivity
- MAXIMUM... 250mV
- Output Regulation
- .063dB @ 4 ohms
- MSRP U.S.
- $474.95 each
560 Watt 6-Channel Power Amplifier
