Support Overview / HTS 20

HTS 20

6-Piece Speaker w/ Subwoofer

Sold from 1999 until 2003

Successor Products:	CMS 2
Successor Products:	TSS 750
Made in:	Taiwan

Documents & Downloads

Manuals

Owners Manual (English) 565.92 KB

Other

DIY Troubleshooting (English) 288.38 KB

Product Specifications

General Specifications

Finish: Black/Charcoal

Drivers: Satellites – Low/Mid Frequency... one 4 inch (102mm) magnetically shielded, polypropylene cone. High Frequency... one 1/2 inch (13mm) magnetically shielded, polycarbonate- dome tweeter. Voice-Matched Center Channel... Low/Mid Frequency... one 4 inch (102mm) magnetically shielded, polypropylene cone, magnetically shielded drive units. High Frequency... one 1/2 inch (13mm) magnetically shielded, polycarbonate- dome tweeter with elliptical wave guide. Subwoofer...12 inch woofer

Amplifier Power (RMS): Subwoofer... 150-watt internal amplifier, Class D

Recommended Amplifier Power (RMS): Satellites/ Voice-Matched

Recommended Amplifier Power (RMS): Center Channel... 10-100 Watts

Sensitivity (1 watt @ 1 meter): Satellites/Voice-Matched Center Channel... 86dB

Nominal Impedance: 8 ohms

Finish: Satellites... dark gray

Finish: Subwoofer... black

MSRP U.S.: $879.95 per system

Dimensions

Dimensions (H x W x D): Satellites... 8-1/2 inch x 4-1/2 inch x 5-1/2 inch

Dimensions (H x W x D): Voice-Matched Center Channel... 5 inch x 12-1/2 inch x 7 inch

Dimensions (H x W x D): Subwoofer… 14-1/2 inch x 14-1/2 inch x 14-1/2 inch

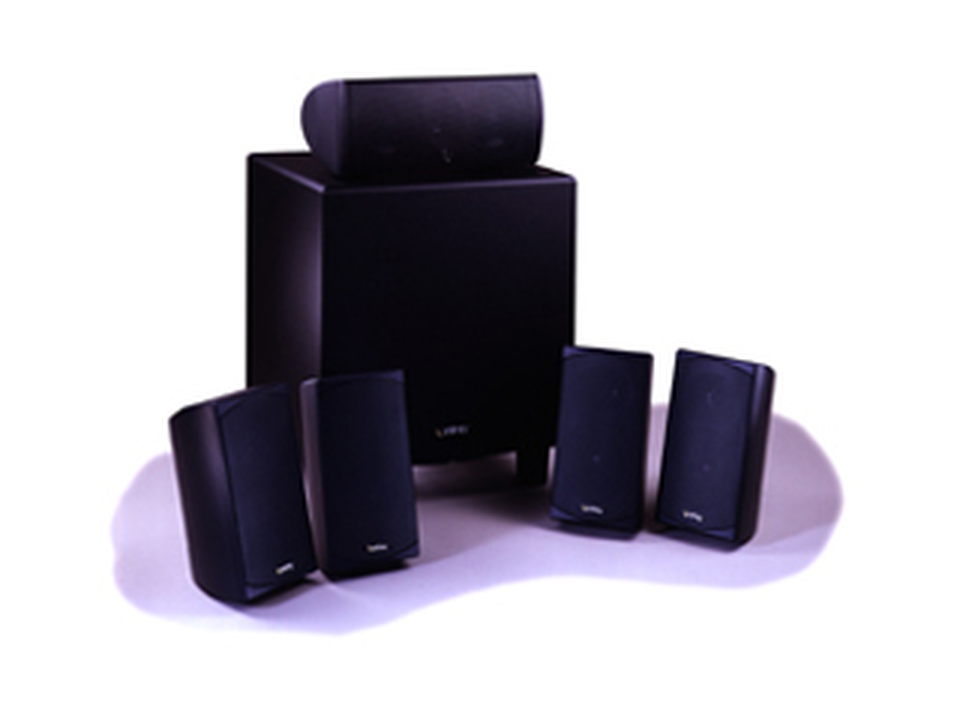

Our step-up system, the HTS-20, combines four of the same satellite speakers with a larger, voice-matched center channel and an even more powerful 12 inch, 150-watt subwoofer. The results are earth-shaking: high definition home-theater surround sound, specifically designed to handle the demands of Dolby Digital playback systems.
