CS 50
2-Way 5-1/4 inch In-Wall Speaker
Documents & Downloads
Product Specifications
- Finish
- White
- Frequency Response
- 48Hz – 20kHz (±3dB) 45Hz (-10dB)
- Recommended Amplifier Power (RMS)
- 10 – 75 watts
- Sensitivity (2.83 volts @ 1 meter)
- 87dB
- Nominal Impedance
- 8 ohms
- Crossover Frequency(ies)
- 2,400Hz; 12dB/octave
- Low-Frequency Transducer (Woofer)
- 5-1/4 inch (130mm)
- High-Frequency Transducer (Tweeter)
- 1 inch (25mm)
- Optional Accessories
- Rough-In Frame... CS50 RIF
- MSRP U.S.
- $149.95 each
- Mounting Depth
- 3-3/4 inch (95mm)
- Weight
- 3 lb (1.4kg)
- Dimensions
- 7-1/2 inch x 10 inch (191mm x 254mm)
- Cutout Dimensions
- 6-1/8 inch x 8-11/16 inch (156mm x 221mm)

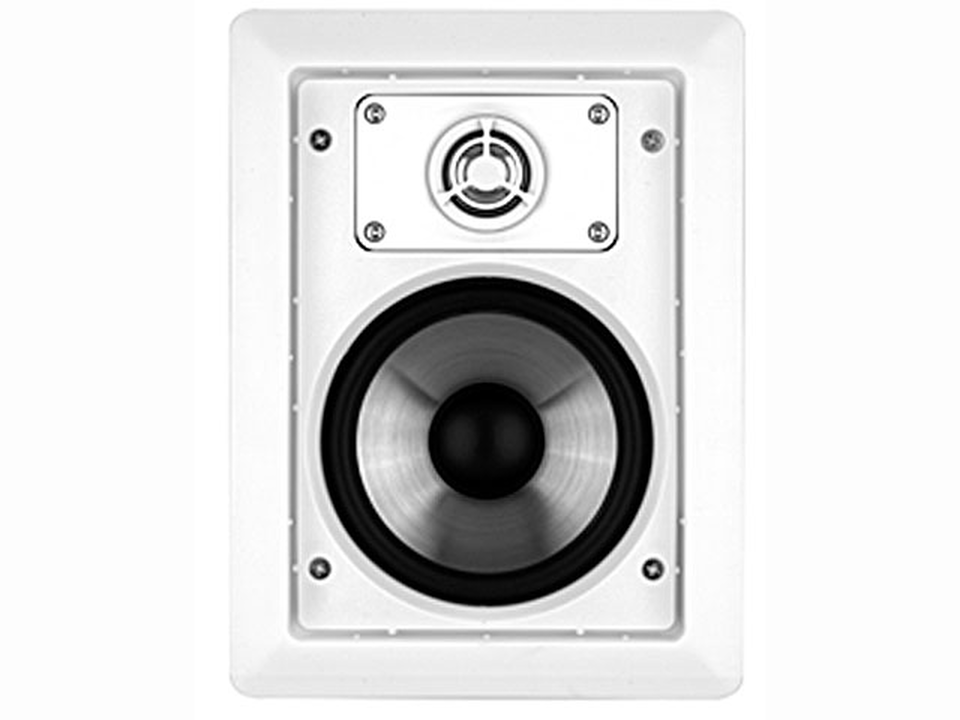

The CS 50 is a 2-way in-wall speaker for use in a wide variety of applications, from stereo and whole-house music systems to complete home theaters. The CS 50 incorporates a pivoting tweeter that allows you to aim the tweeter towards the listening area for great sound anywhere in the room. The white grilles and frames are paintable and allow the speakers to blend into any decor.
