ERS 110 II

2-Way 6-1/2 inch Round In-Wall/Ceiling Speaker

Documents & Downloads

Manuals

Owners Manual (English) 350.6 KB

Other

Product Specifications

General Specifications

Finish: White

Technology: CMMD

Frequency Response: 47Hz – 22kHz (±3dB) 35Hz (-10dB)

Recommended Amplifier Power (RMS): 10 – 125 watts

Sensitivity (2.83 volts @ 1 meter): 89dB

Nominal Impedance: 8 ohms

Crossover Frequency(ies): 2,300Hz; 24dB/octave

Low-Frequency Transducer (Woofer): 6-1/2 inch (165mm) CMMD

High-Frequency Transducer (Tweeter): 3/4 inch (19mm) CMMD

Optional Accessories: Rough-In Frames... IW6R RIF, ERS110 RIF

MSRP U.S.: $179.95 each

Dimensions

Mounting Depth: 3-1/2 inch (89mm)

Weight: 3.1 lb (2.5kg)

Dimensions: Diameter... 9-3/16 inch (233mm)

Cutout Dimensions: 7-7/8 inch (Dia.); (200mm)

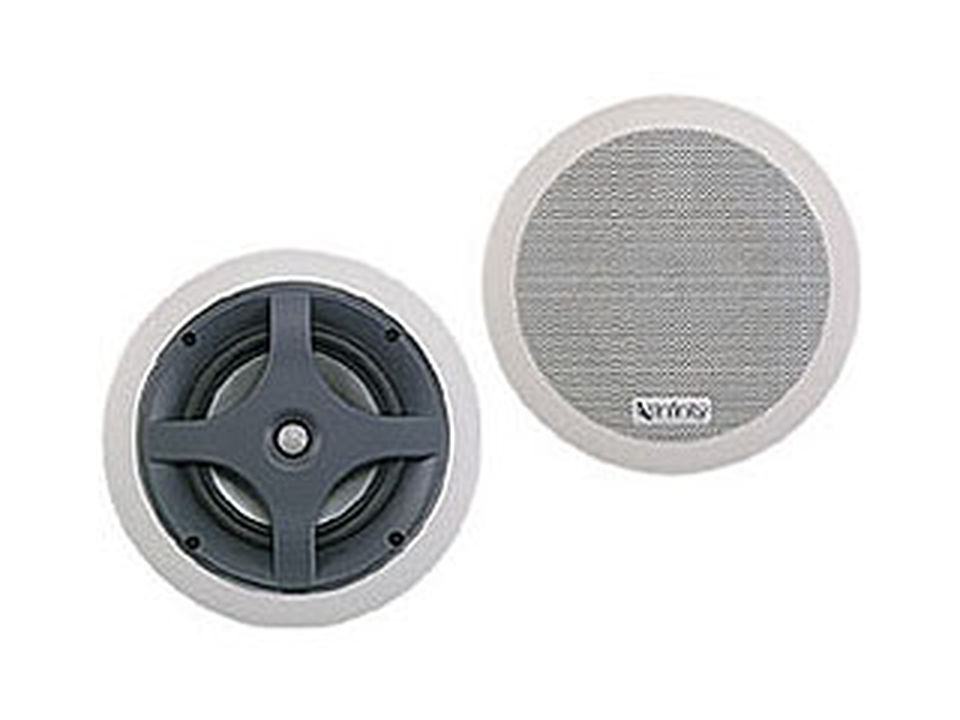

The ERS 110II is a round 2-way in-ceiling speaker for use in a wide variety of applications, from stereo and whole-house music systems to complete home theaters. The ERS 110II incorporates Infinity's patented Ceramic Metal Matrix Diaphragm (CMMD;) technology to eliminate unwanted resonances and deliver clear, undistorted sound. The ERS 110II also incorporates a proprietary waveguide design to ensure smooth distribution of sound throughout the listening area. The white grilles and frames are paintable and allow the speakers to blend into any decor.
