CASCADE MODEL 3V

Dual 7-3/4 inch x 3-3/8 inch Flat Panel Drivers 2-way speaker

Documents & Downloads

Manuals

Owners Manual (English) 872.06 KB

Other

Product Specifications

General Specifications

Finish: Real-Wood Cherry Veneer, High-Gloss Black, High-Gloss Silver

Technology: CMMDMRS Driver

Frequency Response: 80Hz – 20kHz (±3dB)

Frequency Response: 72Hz – 40kHz (-6dB)

Recommended Amplifier Power (RMS): 10 – 150 Watts

Sensitivity (2.83 volts @ 1 meter): 87dB

Nominal Impedance: 8 ohms

Crossover Frequency(ies): 1,500Hz; 24dB/Octave

Low-Frequency Transducer (Woofer): Dual 7-3/4 inch x 3-3/8 inch (197mm x 85mm) CMMD, magnetically shielded

High-Frequency Transducer (Tweeter): 1 inch (25mm) CMMD

FinishEU: Real-Wood Cherry Veneer, High-Gloss Black

MSRP U.S.: $849.95 each

Dimensions

Weight: On shelf stand... 26 lb (11.8kg)

Weight: Wall-mounted... 18 lb (8.2kg)

Dimensions (H x W x D): On shelf stand... 36-5/8 inch x 7-3/4 inch x 8-1/2 inch (930mm x 197mm x 216mm)

Dimensions (H x W x D): Wall-mounted... 30 inch x 5-1/2 inch x 5-1/2 inch (762mm x 140mm x 140mm)

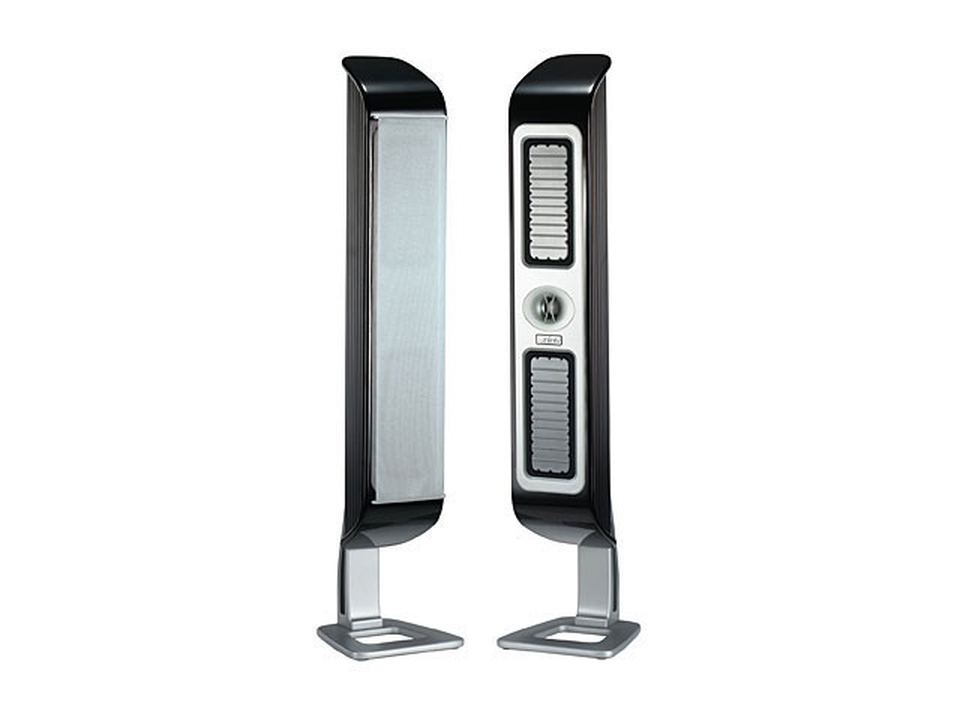

The Infinity Cascade; Model Three V bookshelf/on-wall loudspeaker utilizes two patent-pending Maximum Radiating Surface (MRS) flat-panel drivers with Ceramic Metal Matrix Diaphragms (CMMD) and a 1 inch CMMD tweeter mounted in Infinity's proprietary Constant Acoustic Impedance; (CAI;) waveguide to deliver uncompromising sonic performance from a strikingly beautiful loudspeaker. Shelf stand AND wall-mount brackets are included. The Cascade Model Three V is magnetically shielded and available in a choice of real-wood cherry veneer, high-gloss black or high-gloss silver finish.
