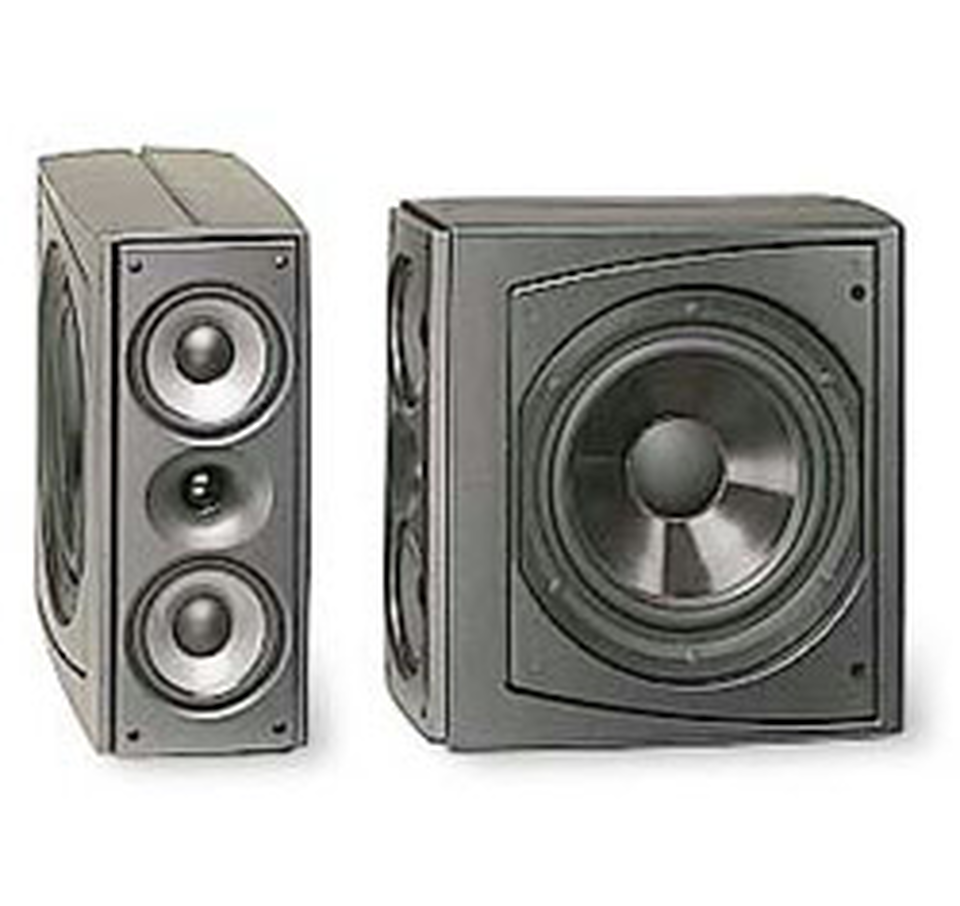

COMPOSITIONS OVERTURE 1CC
3-Way 100 Watt Speaker w/ 150 Watt Built In Powered Sub Center Channel Speaker
Sold from 1997 until 1999
| Successor Products: | INTERMEZZO 3.5C |
|---|---|
| Made in: | USA |
Documents & Downloads
Product Specifications
- Frequency Response
- 35-20kHz
- Sensitivity (2.83 volts @ 1 meter)
- 92dB
- Nominal Impedance
- 8 ohms
- Crossover Frequency(ies)
- 300Hz, 3kHz
- Output Level
- MAX – 108dB spl
- Recommended Amplifier Power (RMS)
- 10 – 100 watts
- Low-Frequency Transducer (Woofer)
- 8 inch high-efficiency ultralinear, magnetically shielded
- Midrange Transducer
- TWO – 4 inch high-efficiency magnetically shielded
- High-Frequency Transducer (Tweeter)
- 1 inch (25mm) soft dome, high-efficiency, magnetically shielded
- MSRP U.S.
- $729.95 each
- Power Output
- PEAK – 250VA
- Power Supply
- 120V – 60Hz
- Power Consumption
- 150 watts (maximum), 7 watts (standBy)
Compositions Prelude Center Channel Loudspeaker for Compositions Prelude. (2) 5-1/4 inch high-efficiency, long-throw mid-bass drivers. (2) 4 inch high-efficiency, polypropylene diaphragm. 1 inch soft-dome tweeter mounted in an Elliptical Waveguide controls high-frequency dispersion, improving imaging and detail.
FAQs & How-Tos
1 results
-
These units do not offer multi-voltage power supplies. However, you can use a domestic 110 volt component overseas with the addition of a step-down transformer, available at most electronics stores.Was this helpful? Thank you for your feedback!
