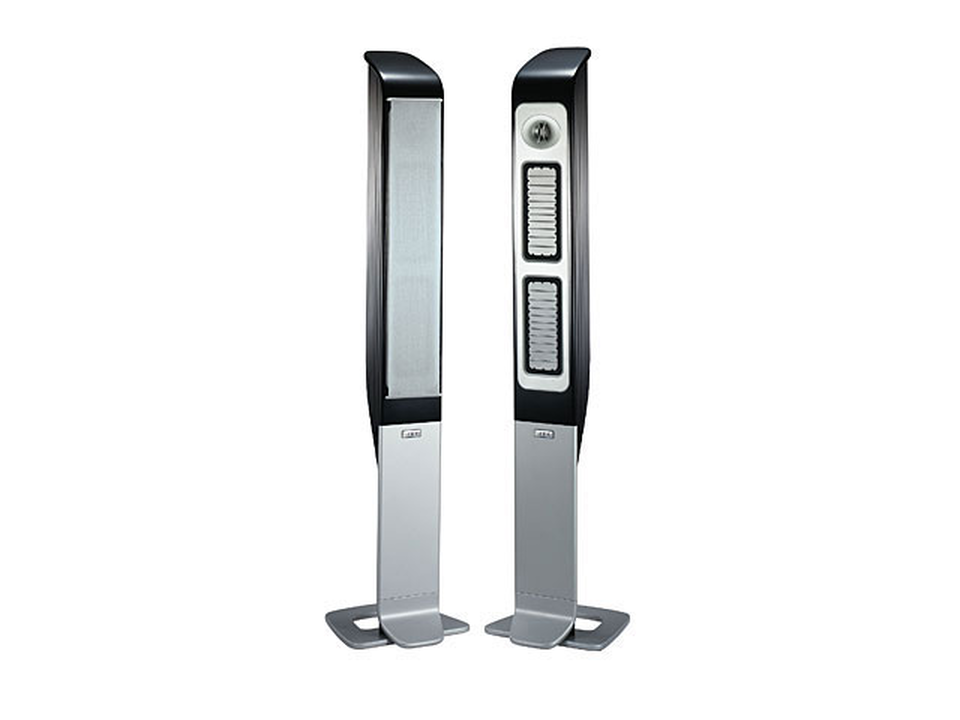

CASCADE MODEL 9
Dual 7-3/4 inch x 3-3/8 inch Flat-Panel Drivers 2-way Floorstanding Loudspeaker
Documents & Downloads
Product Specifications
- Finish
- Real-Wood Cherry Veneer, High-Gloss Black, High-Gloss Silver
- Technology
- CMMDMRS Driver
- Frequency Response
- 80Hz – 20kHz (±3dB)
- Frequency Response
- 72Hz – 40kHz (-6dB)
- Recommended Amplifier Power (RMS)
- 10 – 150 Watts
- Sensitivity (2.83 volts @ 1 meter)
- 87dB
- Nominal Impedance
- 8 ohms
- Crossover Frequency(ies)
- 1,500Hz; 24dB/octave
- Low-Frequency Transducer (Woofer)
- Dual 7-3/4 inch x 3-3/8 inch (197mm x 85mm) CMMD, magnetically shielded
- High-Frequency Transducer (Tweeter)
- 1 inch (25mm) CMMD
- FinishEU
- Real-Wood Cherry Veneer, High-Gloss Black
- MSRP U.S.
- $999.95 each
- Weight
- 28.2 lb (12.8kg)
- Dimensions (H x W x D)
- 47 inch x 10-1/2 inch x 11-1/2 inch (1194mm x 267mm x 292mm)
The Infinity Cascade; Model Nine floorstanding loudspeaker utilizes two patent-pending Maximum Radiating Surface (MRS) flat-panel drivers with Ceramic Metal Matrix Diaphragms (CMMD) and a 1 inch CMMD tweeter mounted in Infinity's proprietary Constant Acoustic Impedance; (CAI;) waveguide to deliver uncompromising sonic performance from a strikingly beautiful loudspeaker. The Cascade Model Nine is magnetically shielded and available in a choice of real-wood cherry veneer, high-gloss black or high-gloss silver finish.
