Product Specifications
- Enclosure Design
- Aluminum
- Finish
- Charcoal, Platinum
- Technology
- MMD
- MSRP U.S.
- $749.95 per system
- Weight
- CENTER... 4.5 lb (2.0kg)
- Weight
- SATELLITES... 2.8 lb (1.3kg)
- Weight
- SUBWOOFER... 28 lb (12.7kg)
- Dimensions (H x W x D)
- CENTER... 4-1/8 inch x 9-1/4 inch x 4-3/8 inch (105mm x 235mm x 111mm)
- Dimensions (H x W x D)
- SATELLITES... 6 inch x 4-1/8 inch x 4-3/8 inch (152mm x 105mm x 111mm)
- Dimensions (H x W x D)
- SUBWOOFER... 16-3/4 inch x 10Hz – 3/4 inch x 15-3/4 inch (425mm x 273mm x 400mm)
- Frequency Response
- 34Hz – 150Hz (±3dB)
- Amplifier Power (RMS)
- 150 watts
- Power Handling (peak)
- 500 watts
- Subwoofer Transducer
- 10 inch MMD
- Crossover Frequency(ies)
- 50Hz – 150Hz, 24dB/octave continuously variable
- Frequency Response
- 120Hz – 20kHz (±3db)
- Recommended Amplifier Power (RMS)
- 10 – 100 watts
- Sensitivity (1 watt @ 1 meter)
- 88dB
- Nominal Impedance
- 8 ohms
- Crossover Frequency(ies)
- 3500Hz, 24dB/octave
- Midrange Transducer
- 3-1/2 inch MMD, magnetically shielded
- High-Frequency Transducer (Tweeter)
- 3/4 inch MMD, magnetically shielded
- Frequency Response
- 120Hz – 20kHz (±3dB)
- Recommended Amplifier Power (RMS)
- 10 – 125 watts
- Sensitivity (2.83 volts @ 1 meter)
- 89dB
- Nominal Impedance
- 8 ohms
- Crossover Frequency(ies)
- 3500Hz, 24dB/octave
- Midrange Transducer
- Dual 3-1/2 inch MMD, magnetically shielded
- High-Frequency Transducer (Tweeter)
- 3/4 inch MMD, magnetically shielded

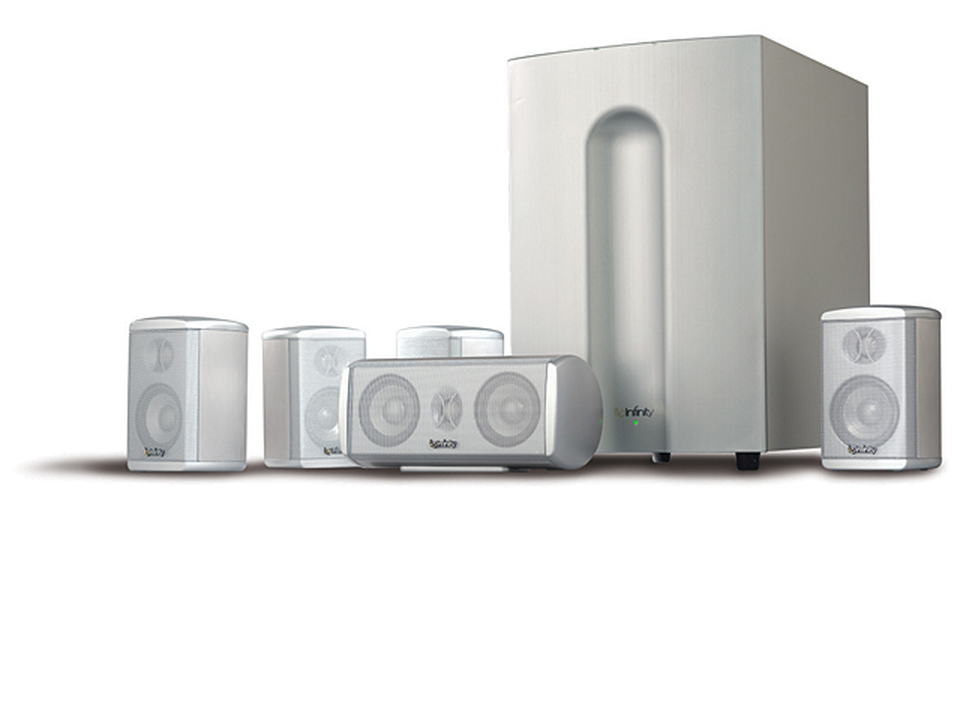

The Infinity Total Solutions; TSS-750 is a complete multichannel music and home theater loudspeaker system featuring proprietary MMD; drivers. With their compact and versatile design, the satellite speakers can be placed virtually anywhere - on shelves, or mounted on a wall using the included braket. The center channel can easily be placed on top of, or on a shelf below, the television. The powered subwoofer delivers the bass impact and excitement for your favorite music and movie soundtracks. The satellites and center channel feature extruded and brushed aluminum enclosures. Available in platinum and charcoal finishes.
